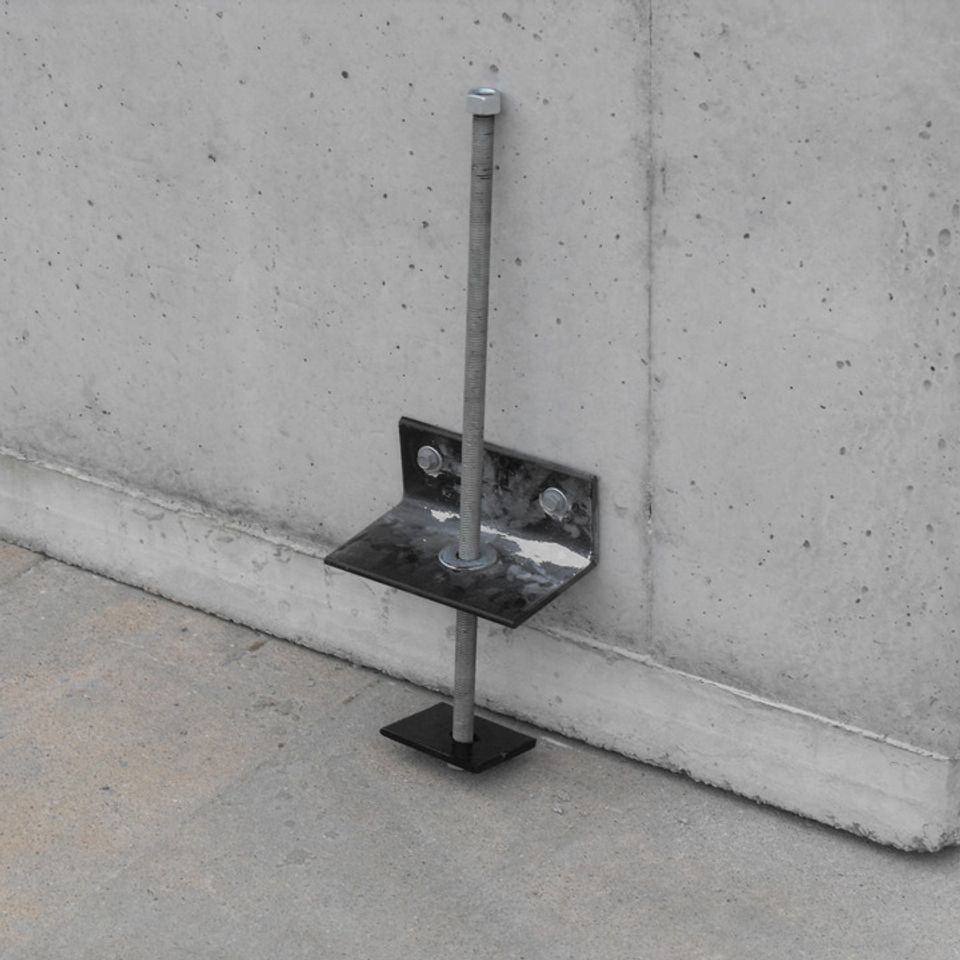

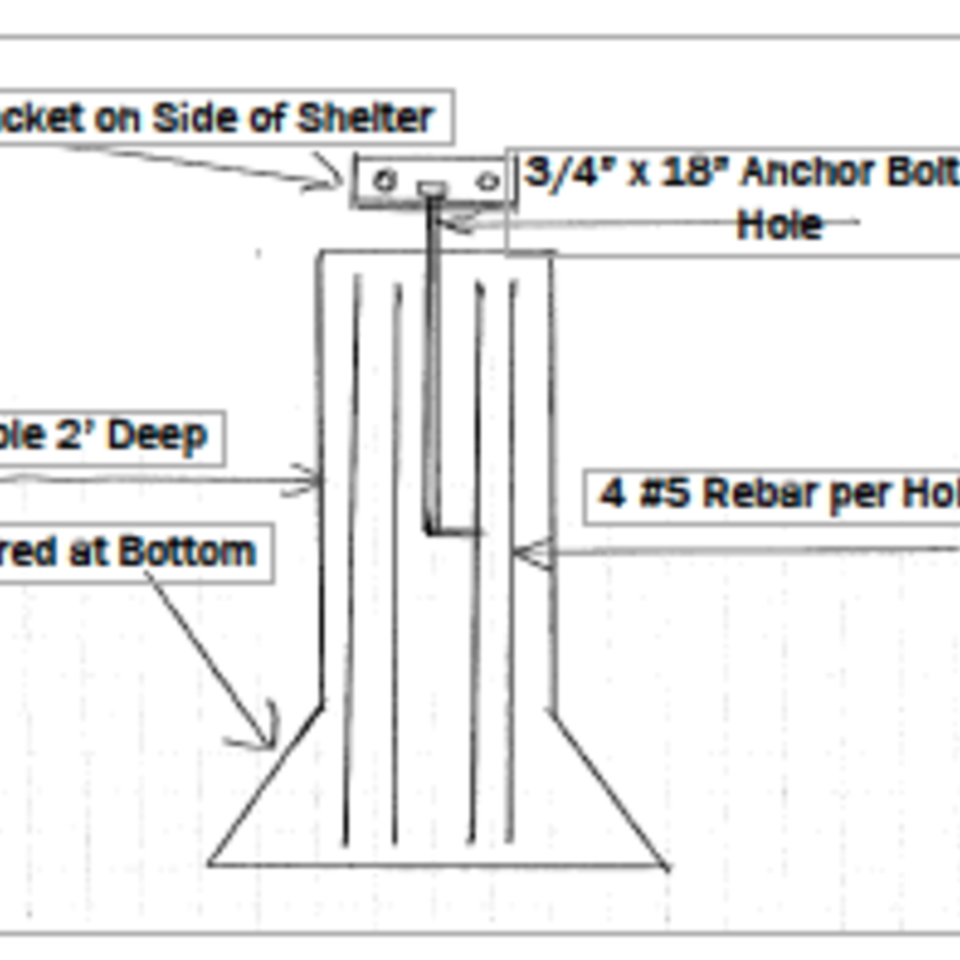

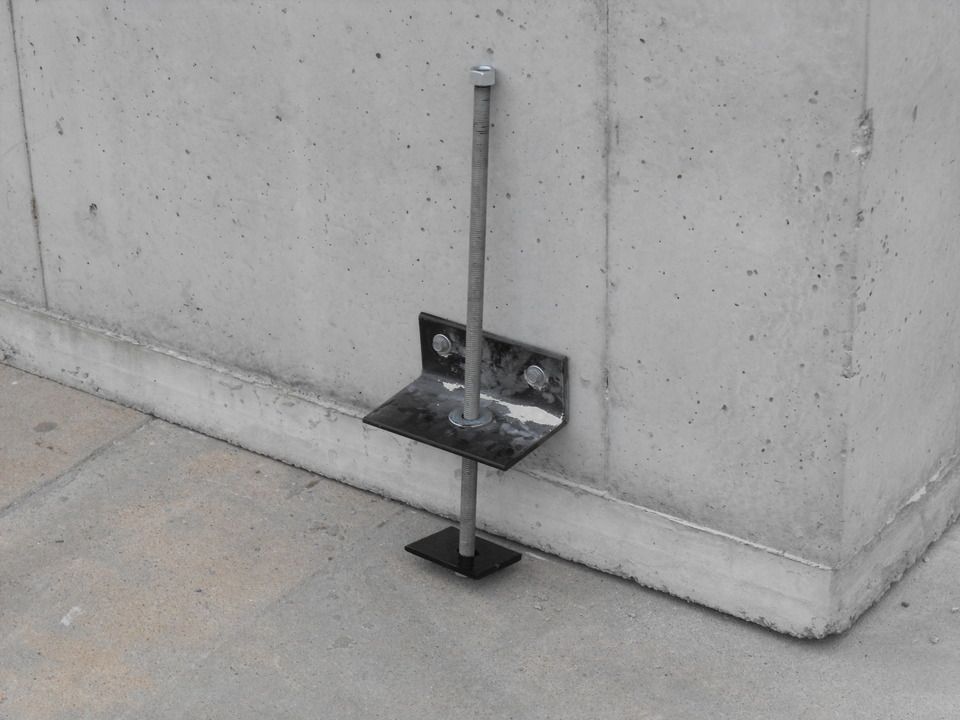

Anchoring Bracket Kit available at an additional cost

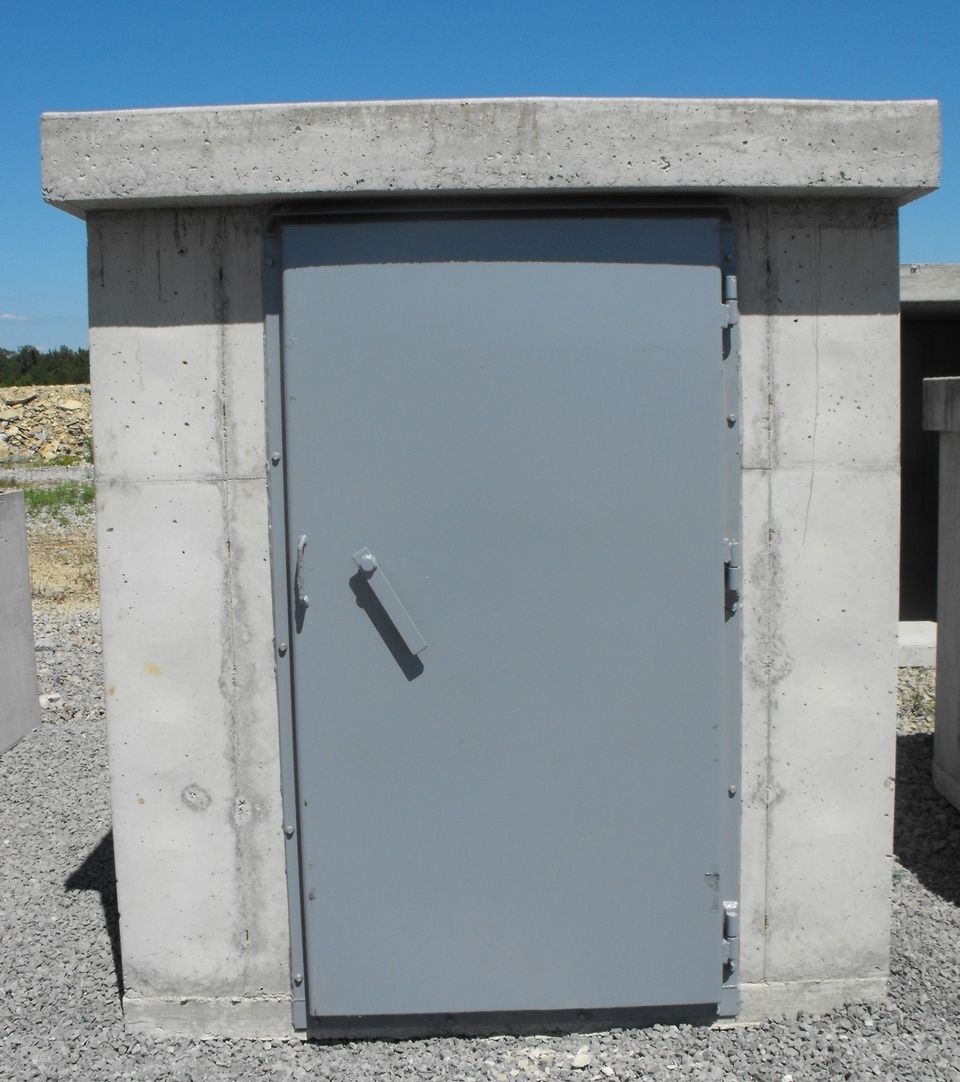

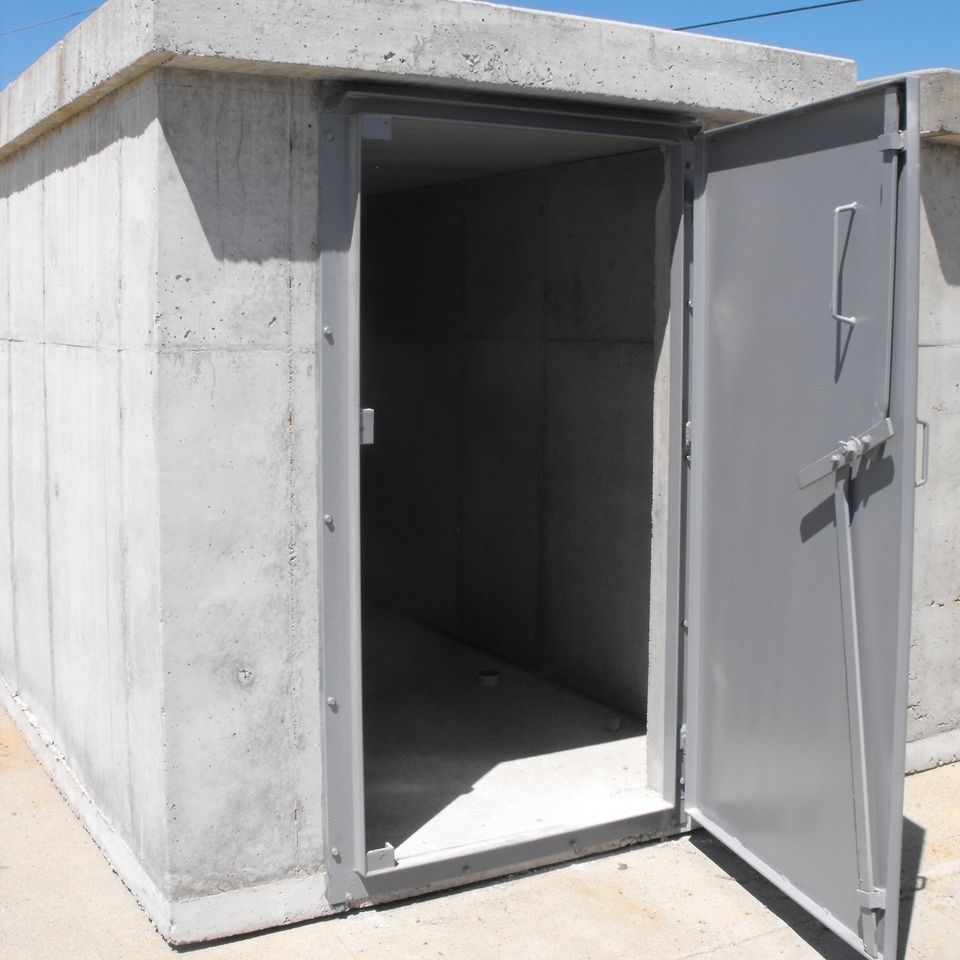

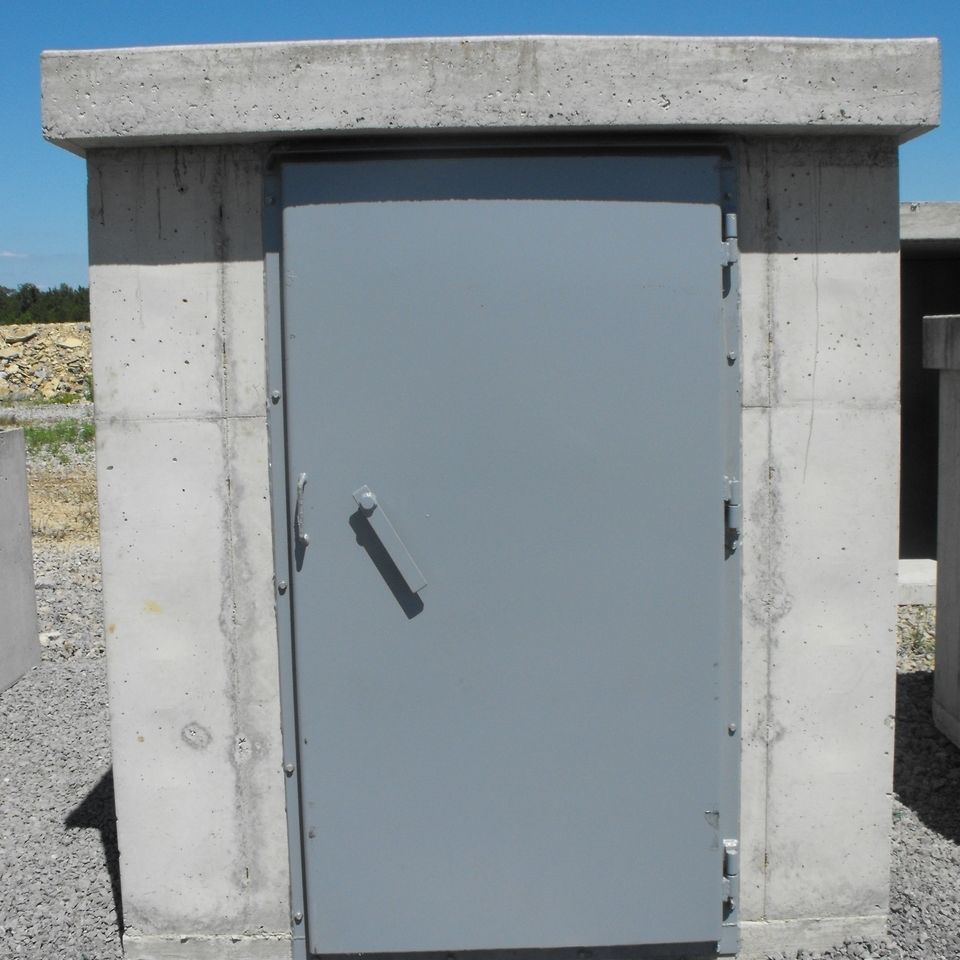

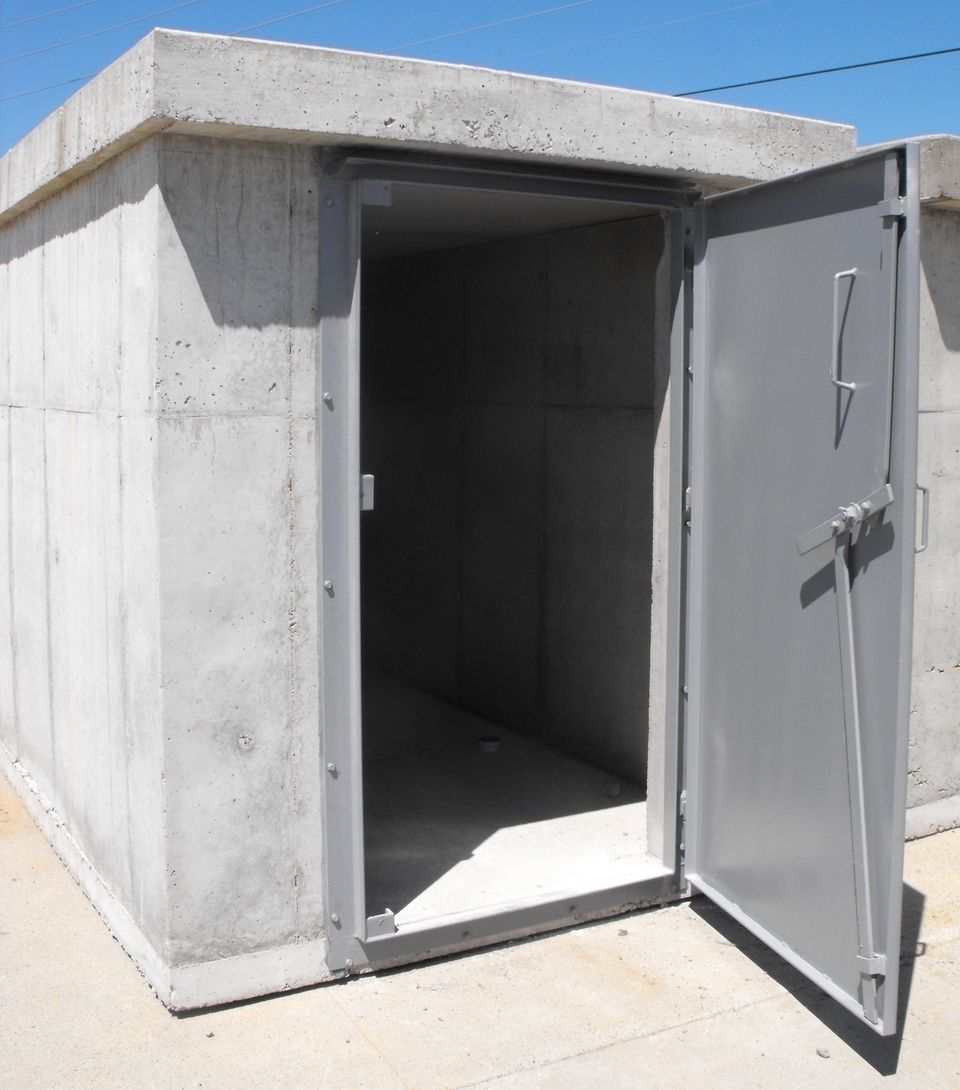

6’ x 10’ x 7’ Above Ground Storm Shelter
Strong steel reinforced precast 4500 psi concrete with fiber mesh

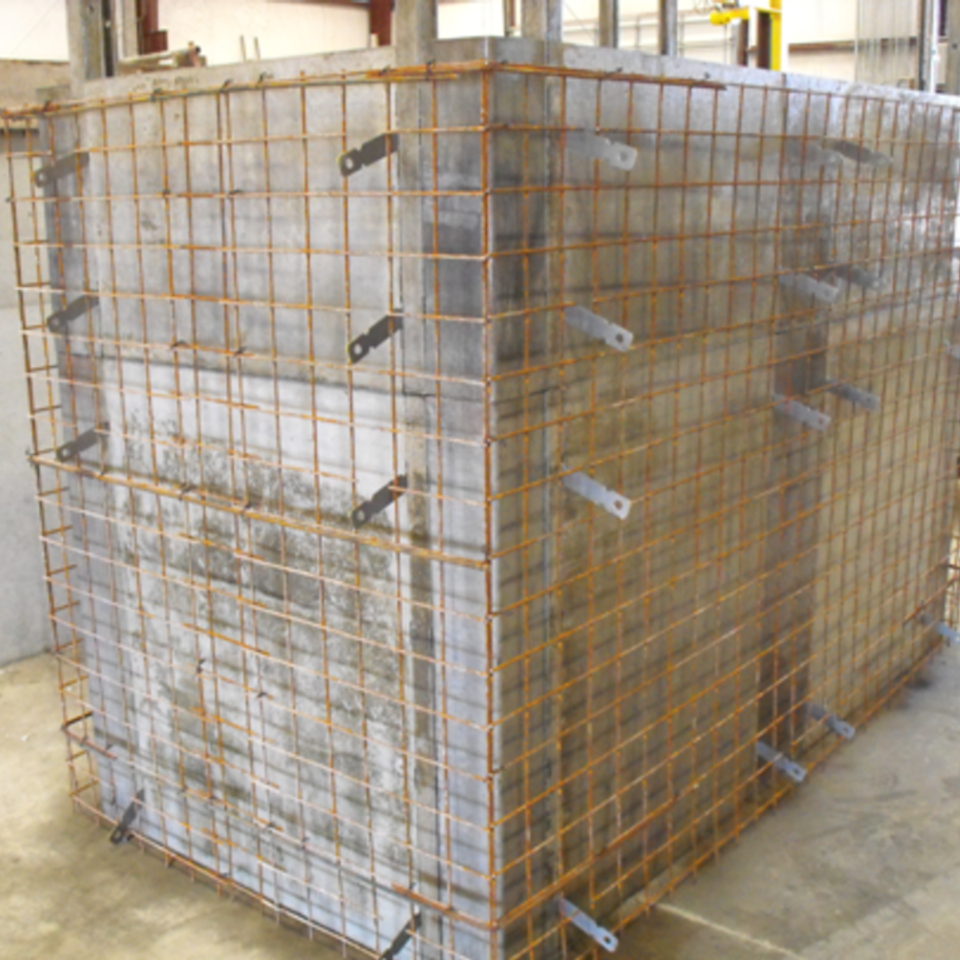

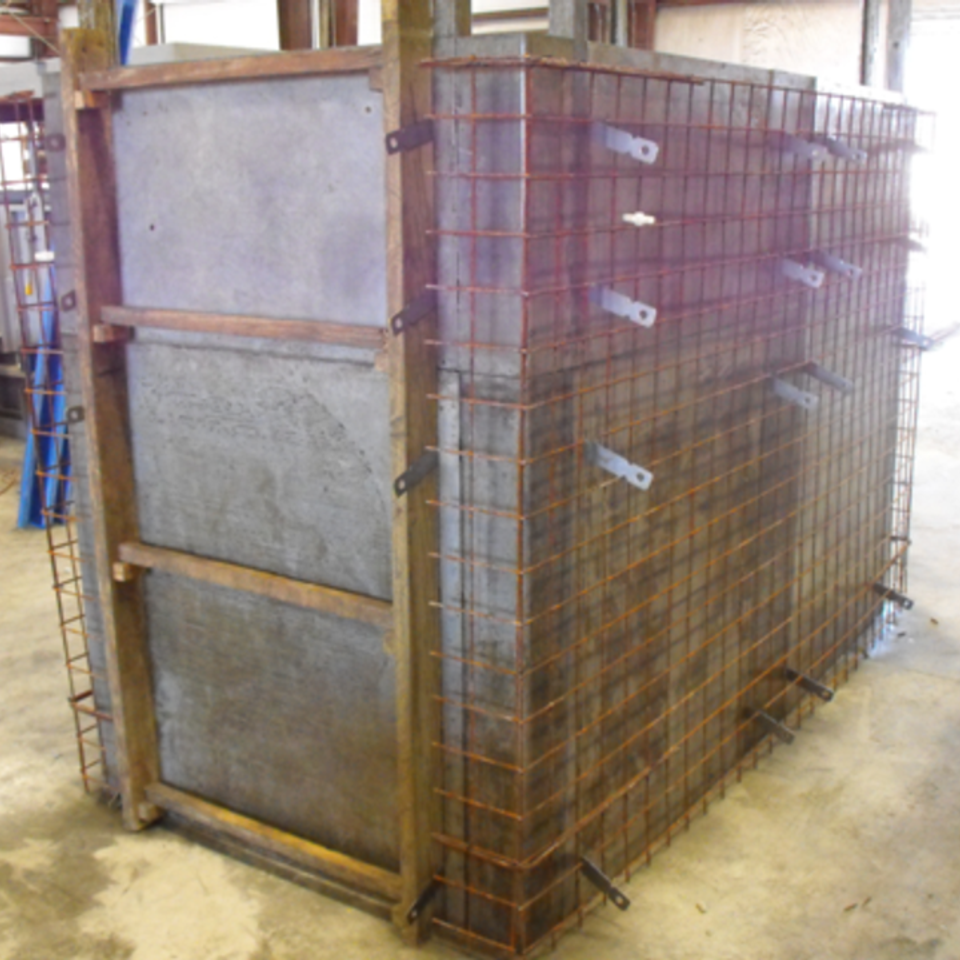

4” x 4” x 6 gauge concrete wire wrapped with #4 rebar and all tied together in a cage
One piece unit with all steel tied together
Thickness: 7” Top, 4” Bottom, 4” Walls
Attractive – smooth finished concrete
Sized to seat up to 8 people
Top mounted 12 – 14” wind turbine for ventilation
Door with a viewport: Strong 3/16” Steel with 3 point latching on door & 3 hinges
Outside measurements: 6’ Wide, 10’ Deep, 7’ Tall
Inside measurements: 5’ 4” Wide, 9’4” Deep, 6’ Tall
Approximate weight: 16,740 lbs
4” x 4” x 6 gauge concrete wire wrapped with #4 rebar and all tied together in a cage
One piece unit with all steel tied together
Thickness: 7” Top, 4” Bottom, 4” Walls
Attractive – smooth finished concrete
Sized to seat up to 8 people
Top mounted 12 – 14” wind turbine for ventilation
Door with a viewport: Strong 3/16” Steel with 3 point latching on door & 3 hinges
Outside measurements: 6’ Wide, 10’ Deep, 7’ Tall
Inside measurements: 5’ 4” Wide, 9’4” Deep, 6’ Tall
Approximate weight: 16,740 lbs

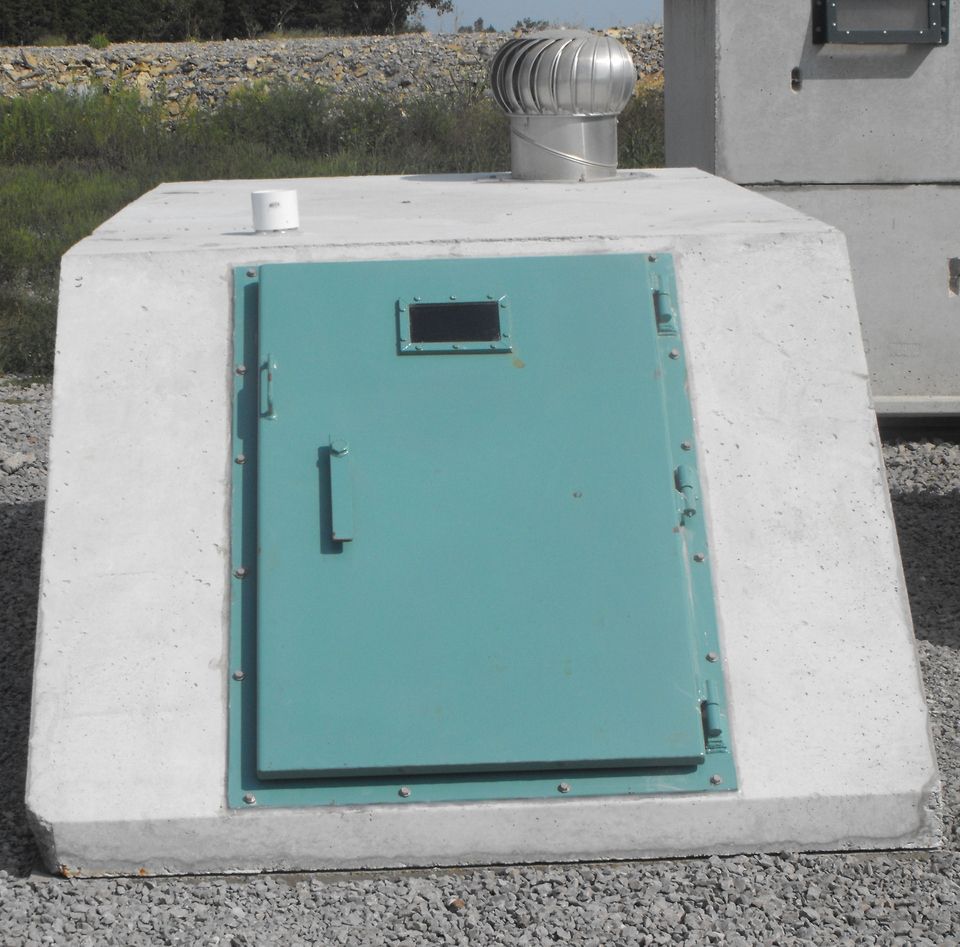

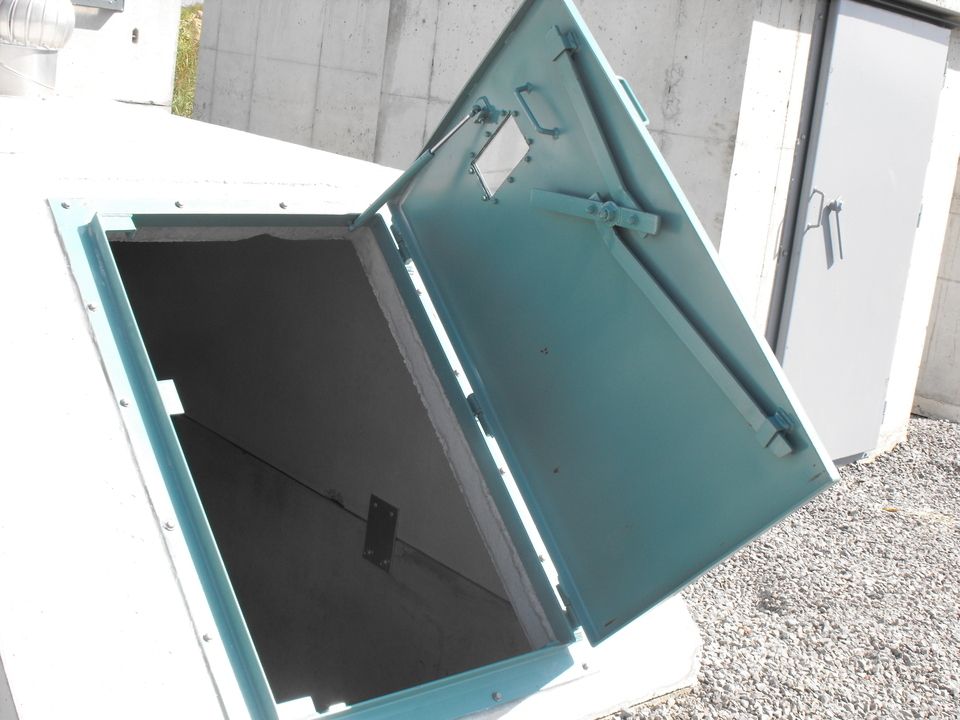

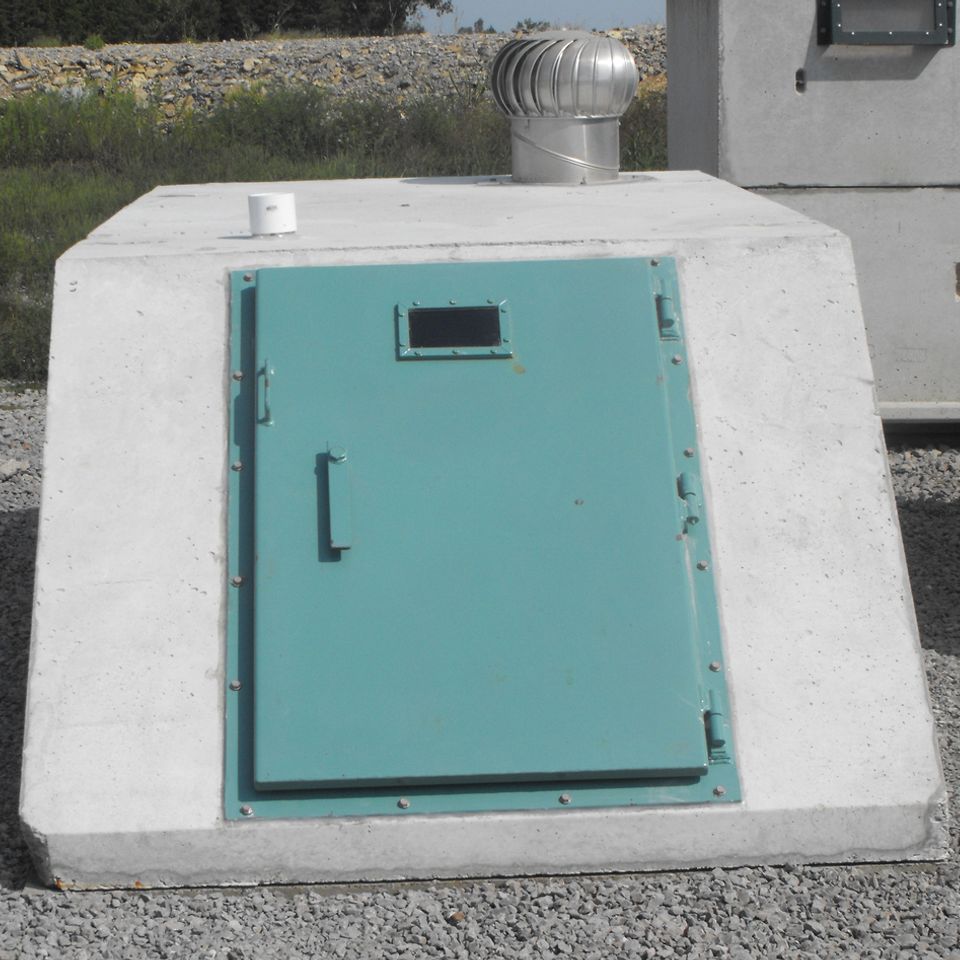

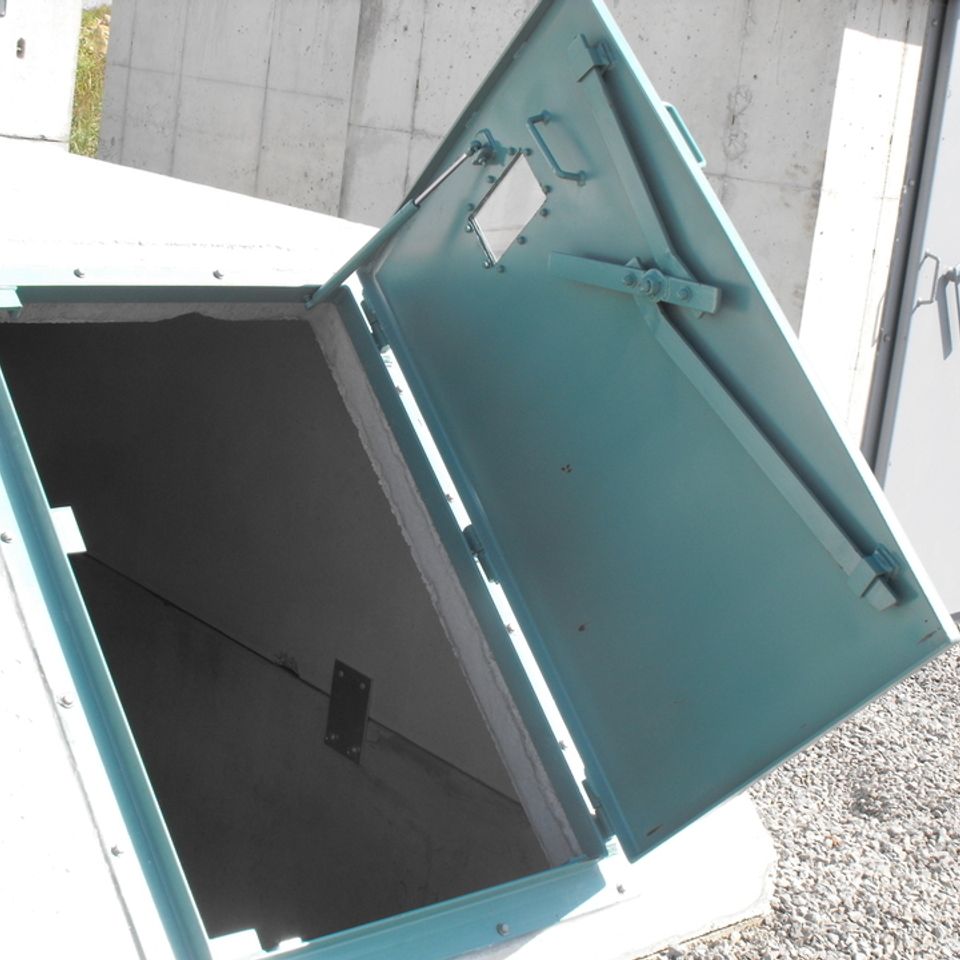

Life Protector Storm Shelter
Strong steel reinforced precast 4500 psi concrete with fiber mesh

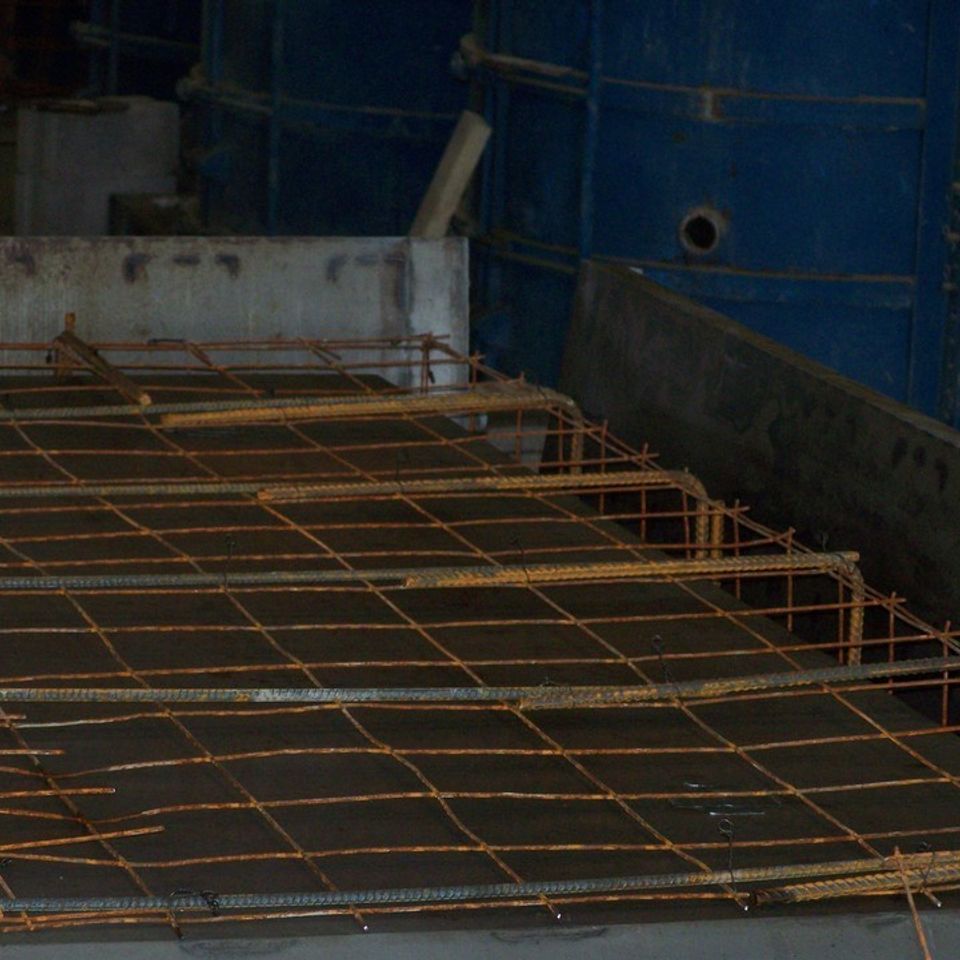

6” x 6” x 10 gauge concrete wire wrapped with #4 rebar and all tied together in a cage
Concrete walls are 4 ½” – 5” thick
Attractive – smooth finished concrete
Sized to comfortable seat up to 12 adults
Partial bury shelter unit / easy to install
Easy entrance access (Concrete steps not a ladder)
Top mounted 12 – 14” wind turbine for ventilation
2 Halves sealed with water tight sealant and 5 – 3/16” steel plates
Door with a viewport: Strong 3/16” Steel with 3 point latching on door & 3 hinges
Outside measurements: 5’ 4” Wide, 11’ 10” Long, 6’ 8” Tall
Approximate weight: 18,000 lbs, 9000 lbs each piece
6” x 6” x 10 gauge concrete wire wrapped with #4 rebar and all tied together in a cage
Concrete walls are 4 ½” – 5” thick
Attractive – smooth finished concrete
Sized to comfortable seat up to 12 adults
Partial bury shelter unit / easy to install
Easy entrance access (Concrete steps not a ladder)
Top mounted 12 – 14” wind turbine for ventilation
2 Halves sealed with water tight sealant and 5 – 3/16” steel plates
Door with a viewport: Strong 3/16” Steel with 3 point latching on door & 3 hinges
Outside measurements: 5’ 4” Wide, 11’ 10” Long, 6’ 8” Tall
Approximate weight: 18,000 lbs, 9000 lbs each piece
